Service Documentation

Intel Modular Server

• The Storage has been configured with two drive pools
  1. 6 x 500Gb eSata 7.2K drives and 1 spare
  2. 6 x 146Gb SAS 10K drives and 1 spare

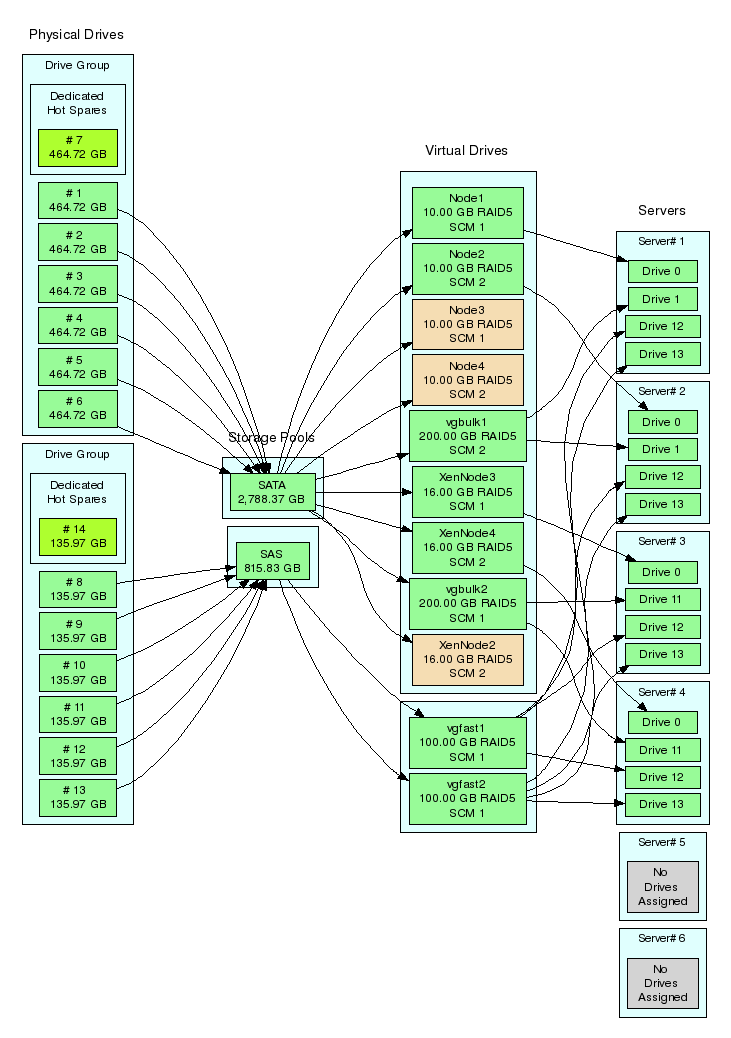

• A Number of Virtual raid5 volumes have been created in these pools as documented by the diagram below

• Blades One and Two use linux-vservers with ocfs2 shared storage.

• Blades Three and Four use Proxmox which supplies KVM virtual machine services.
